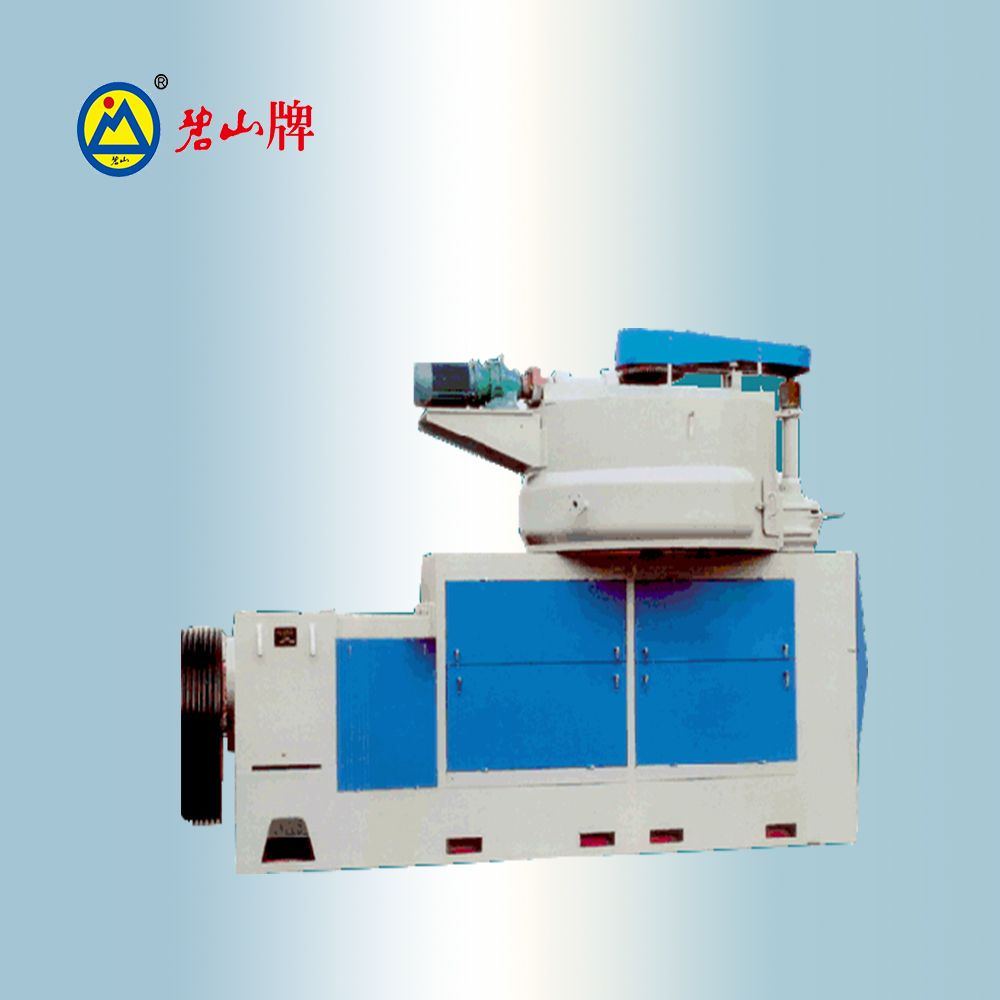

YZY320 New Type Spiral Oil Press

General description
YZY320 screw press is a new big expeller which has high rotating speed, thin cake, can get oil both from outside and inside the pressing cage, specially suitable for the pre-pressing and solvent extraction or twice pressing process, it can be used for the pressing of peanut kernel, cottonseed kernel, rapeseed and sunflower seed kernel, etc.

Features
YZY320 is specially designed for pre-pressing process. Under common appropriate preparation condition, it has below highlights:
1. Large production capacity. So workshop floor area and power consumption, maintenance and operation required works are saved.
2. The cake is of loose structure, which helps solvent permeate the cake.
3. The oil and water content of cake is suitable for solvent extraction.
4. The crude oil's quality is better than full press or direct extraction.

Technology Data
1. Capacity: above 200-260T/D(take cottonseed or rapeseed pressing as example)
2. Residual oil content in cake: 15-18%( under appropriate preparation)
3. Motor power: 110Kw
4. Net weight: approx 12650KG
5. Dimension: 4832×2917×3236mm
